Cuprum
(Koo-pruhm)
The Wick-less Candle Lamp
Inspiration
My inspirations for this lamp were traditional and modern catholic monasteries as well as candles/lanterns. The solemn yet magnificent monasteries create a contrast between the grandiose and the simple. The spiritual function of these monasteries also influenced me as I considered color scheme and its effect on mood.
My selected pencil sketch ideas (highlighted in blue) were modeled in fusion 360 for further exploration. During this exploration, I utilized solid and surfacing modeling methods. Each iteration introduced improvements and led to 3D printed prototypes.

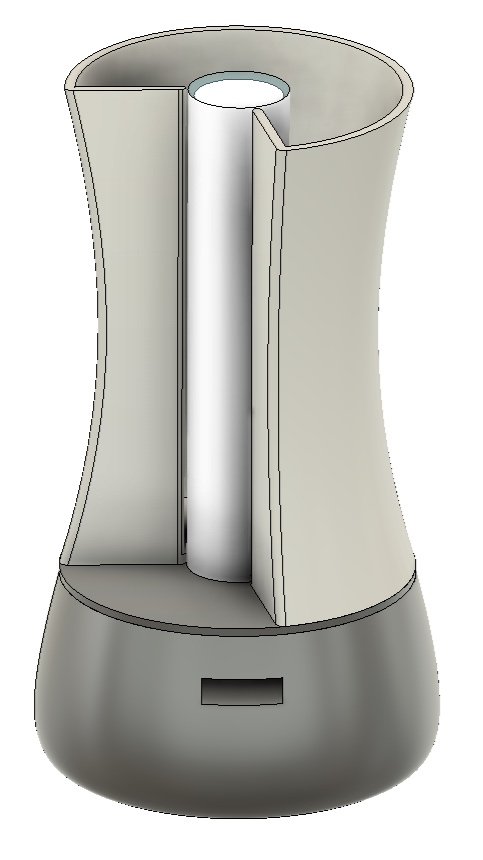

Pictured here are fusion model iterations. In each step, the form was adjusted to allow for maximum light and glow effects which led to further research on materiality and mechanical function.
PLA Lid
Transluscent PLA
Research and Ideation
Transluscent PETG
White LED
LED Housing
2xAA Batteries
Iterating the internals came next, and I experimented with button and wheel activation. I ultimately decided on button activation and designed a holder for both the LED and a space for the AA battery holder.
Experimenting with materials was necessary in order to find the best way to create the lighting effects that I wanted. From using different colored LEDs, to going between PLA and PETG, I found that blue transparent PETG was the most effective.
Design Goal:
To design a lamp that combines the ambient glow of a lantern with focused task lighting. It will feature minimal yet structured forms, evoking a sense of tranquility and timeless elegance.
